CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length

CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length
CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length
Informação Básica
Quantidade de ordem mínima: 1
Preço: 2965
Melhor preço contacto
Capacidade de carga: 1 a 1,5 t Centro de carga: 500mm
Altura de elevação: 2000-3000 mm Capacidade da bateria: 24v/210Ah
Peso de carga: 1000-1500kg Largura da forquilha: 850 mm
Girando raio: 1738/2099 mm Comprimento do garfo: 1070 mm
conduzindo a velocidade: 4 Km/h Inclinação: 3°/5°
Motor de acionamento: 1.2 KW Motor de elevação: 2.2 KW
Tamanho do pneu: 300/250 mm Tamanho geral: 2170*1570*2100 mm
Peso: 900 kg
Destacar:

24V/210Ah Battery Electric Pallet Stacker

,

500mm Load Center Full Electric Stacker

,

1070mm Fork Length Electric Forklift

CE/ISO Certificate 1.5t Full Electric Stacker with 3m Lifting Height

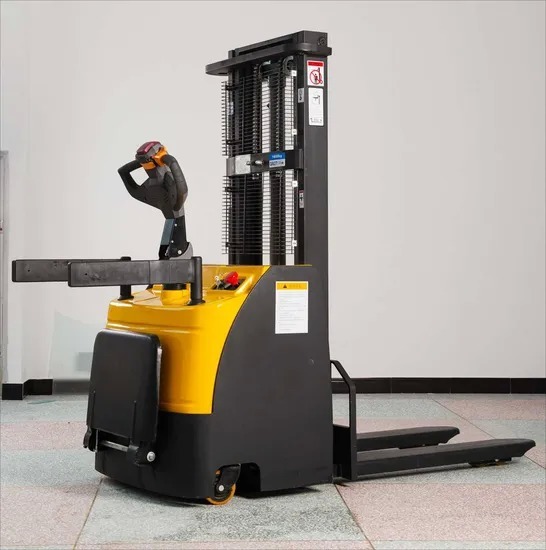

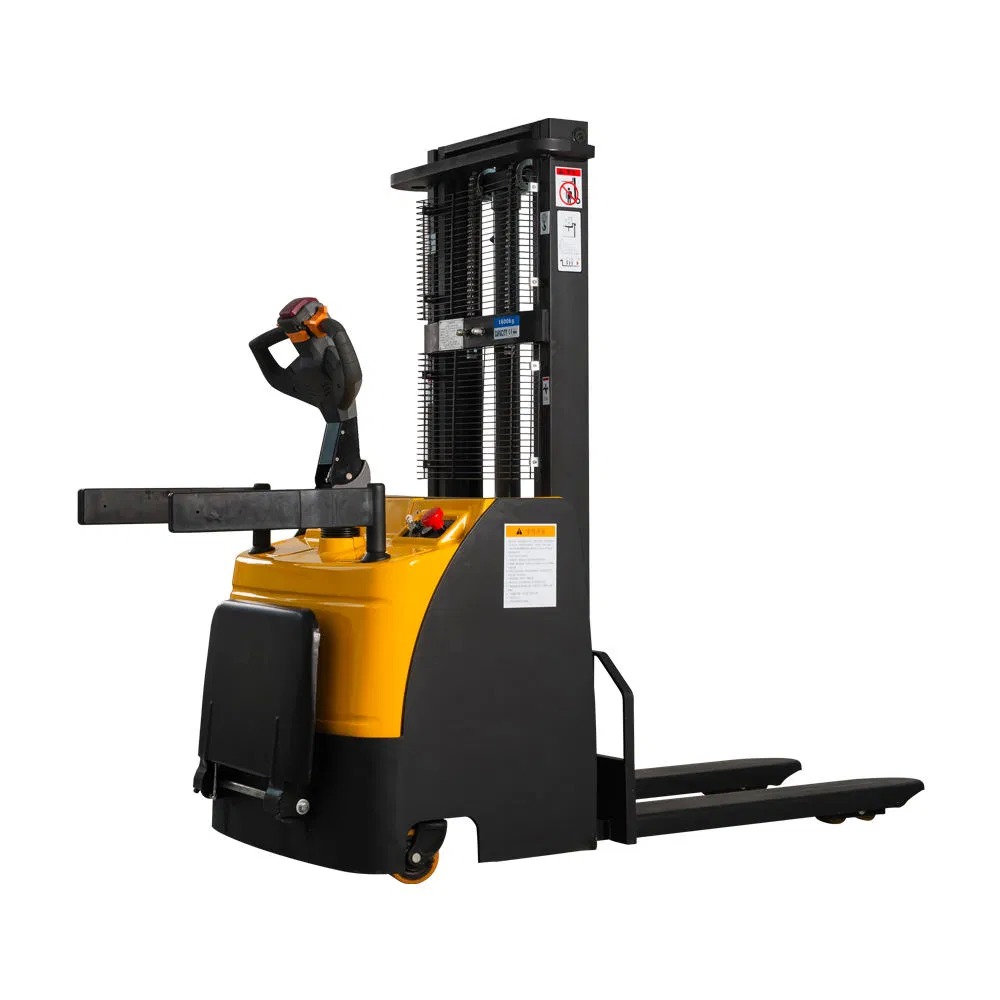

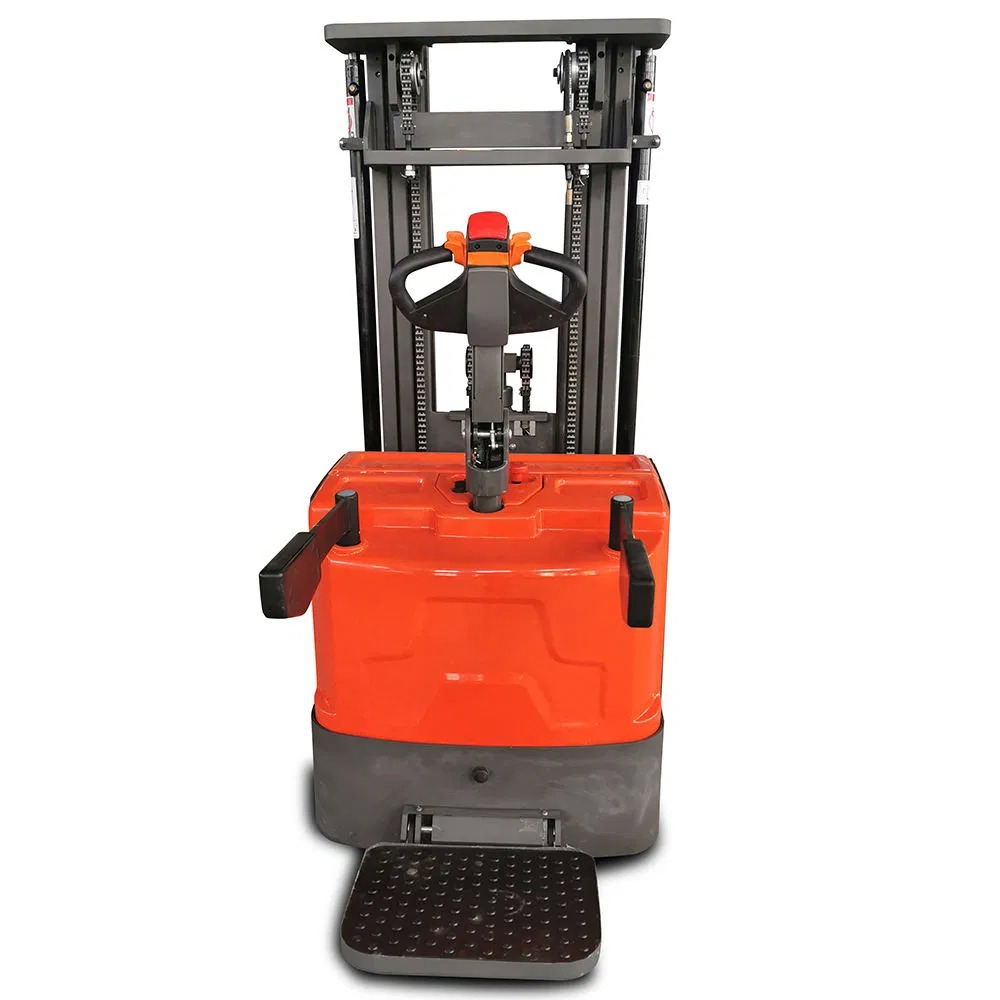

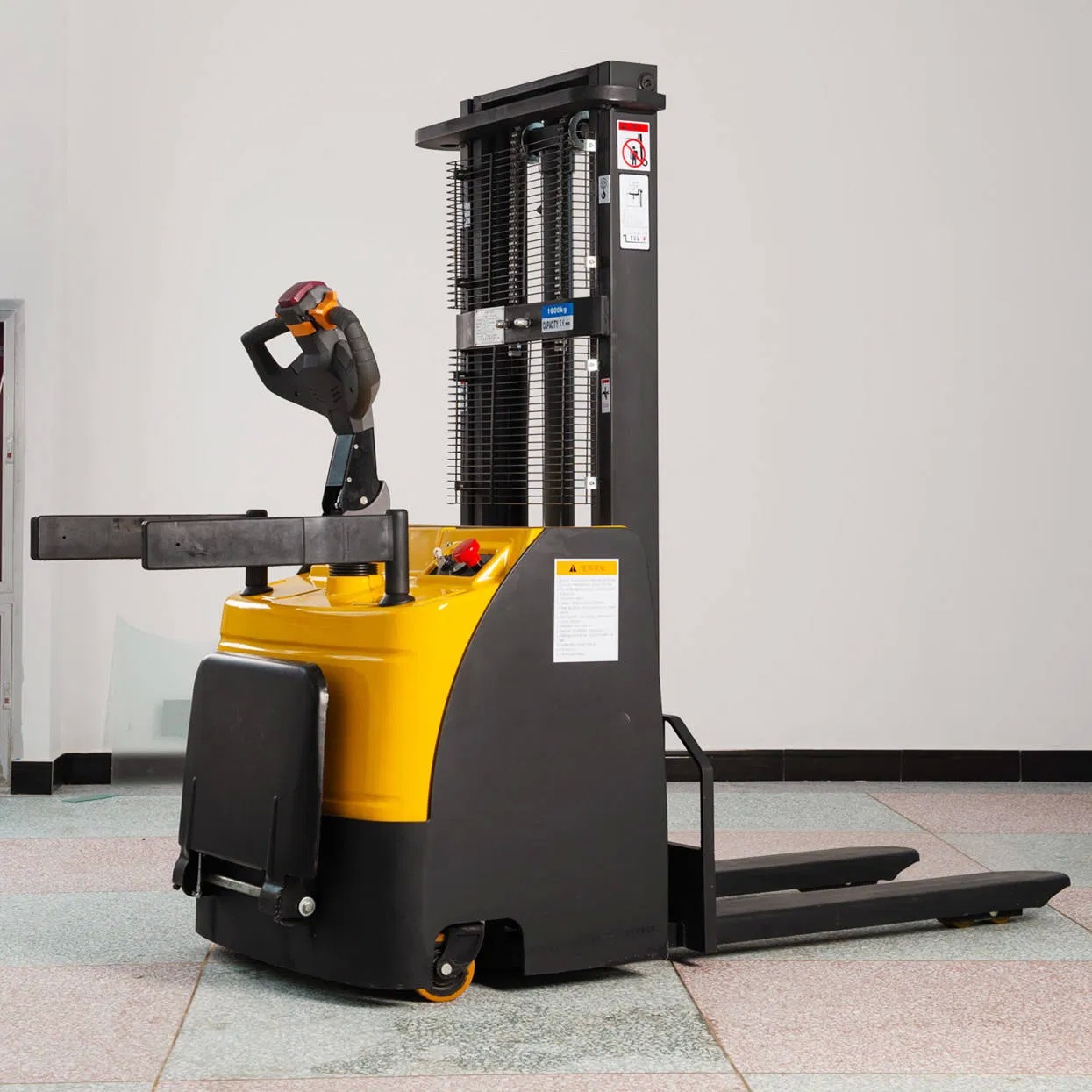

CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length 0
Full electric stackers are designed for efficient loading, stacking, and short-distance palletizing of goods. Featuring a simple structure with flexible operation and excellent micro-operability, these stackers offer high safety performance. Ideal for operations in narrow passages and confined spaces, they can access ship cabins, carriages, and containers for loading, unloading, and pallet handling.
Product Specifications
Model CDD1030 CDD1530
Load Capacity 1000 kg 1500 kg
Lifting Height 3000 mm 3000 mm
Load Center 500 mm 500 mm
Fork Size 1220×100×40 mm 1220×100×40 mm
Ground Clearance 30 mm 30 mm
Pedal Length 410 mm 410 mm
Handler Height 1490 mm 1490 mm
Outer Distance Between Forks 685 mm 685 mm
Inner Distance Between Forks 345 mm 345 mm
Tyre Type Polyurethane Polyurethane
Control Way Handler Handler
Speed Regulation Way Stepless Speed Regulation Stepless Speed Regulation
Min. Turning Radius 1500 mm 1500 mm
Driving Speed with Full Loads 4 km/h 4 km/h
Gradient 3°/5° 3°/5°
Battery 24V/210A 24V/210A
Driving Motor 1.2 KW 1.2 KW
Lifting Motor 2.2 KW 2.2 KW
Tyre Size 300/250 mm 300/250 mm
Overall Size 2170×1570×2100 mm 2170×1570×2100 mm
Weight 900 kg 900 kg
Reference Working Time 6 h 6 h
Increased Height Options 1600/2000/2500/3000/3500 mm 1600/2000/2500/3000/3500 mm
Max Height 2100/1600/1850/2100/2350 mm 2100/1600/1850/2100/2350 mm
Product Features
CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length 1
Control System
CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length 2
Control Handle: Features domestic KAD brand control handle with functional buttons for sensitive UP/DOWN and FORWARD/BACKWARD control.
CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length 3
Operation Panel: Combines key, battery indicator, and emergency switch. The functional panel with beautiful design ensures joyful and easy operation.
Lifting Mechanism
CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length 4
Features strong cylinder and chain system for smooth fork operation. Available with 1-stage, 2-stage, or 3-stage mast options.
CE/ISO Certified 1.5t Full Electric Stacker with 24V/210Ah Battery 500mm Load Center and 1070mm Fork Length 5
Drive System: Side-positioned drive system with strong caster for enhanced stability and easy maneuverability.
Frequently Asked Questions
Q1. What is your terms of packing?
A: Standard packing includes paper package and iron pallet. Custom branded packaging available with authorization.
Q2. What is your terms of payment?
A: 30% deposit via T/T, with 70% balance before delivery. Product photos provided before final payment.
Q3. What is your terms of delivery?
A: Available EXW, FOB, CFR, CIF, DDU terms.
Q4. How about your delivery time?
A: Typically 5-30 days after deposit receipt, depending on order specifics.
Q5. Do you test all your goods before delivery?
A: Yes, we conduct 100% testing before shipment.
Q6. How do you maintain long-term business relationships?
  • Maintain high quality and competitive pricing
  • Treat every customer with respect and sincerity
