| Lugar de origem: | China |
|---|---|
| Marca: | KAD |
| Certificação: | CE/ISO9001 |
| Número do modelo: | CDD20 |
| Quantidade de ordem mínima: | 1 |
| Preço: | $7199 |
| Detalhes da embalagem: | Paleta de ferro + película de plástico |
| Tempo de entrega: | 15 dias úteis |
| Termos de pagamento: | L/C, D/A, D/P, T/T, Western Union |
| Habilidade da fonte: | 50 unidades/mês |
| Modelo NÃO.: | CDD20 | Capacidade de carga: | 1-2Tons |
|---|---|---|---|
| Centro de carga: | 500 mm | Altura de elevação: | 1 a 10 m |
| Capacidade da bateria: | 24V/280AH | Tamanho da forquilha: | 1220*100*40mm |
| Afastamento do solo: | 30mm | Raio de giro: | 1500mm |
| conduzindo a velocidade: | 4km/h | Inclinação: | 3°/5° |
| Motor de condução: | 0,8 kW | Motor de elevação: | 0,8 kW |
| Tamanho do pneu: | 300/250mm | Tamanho total: | 2570*1390*2200mm |
| Peso: | 2.800kg |

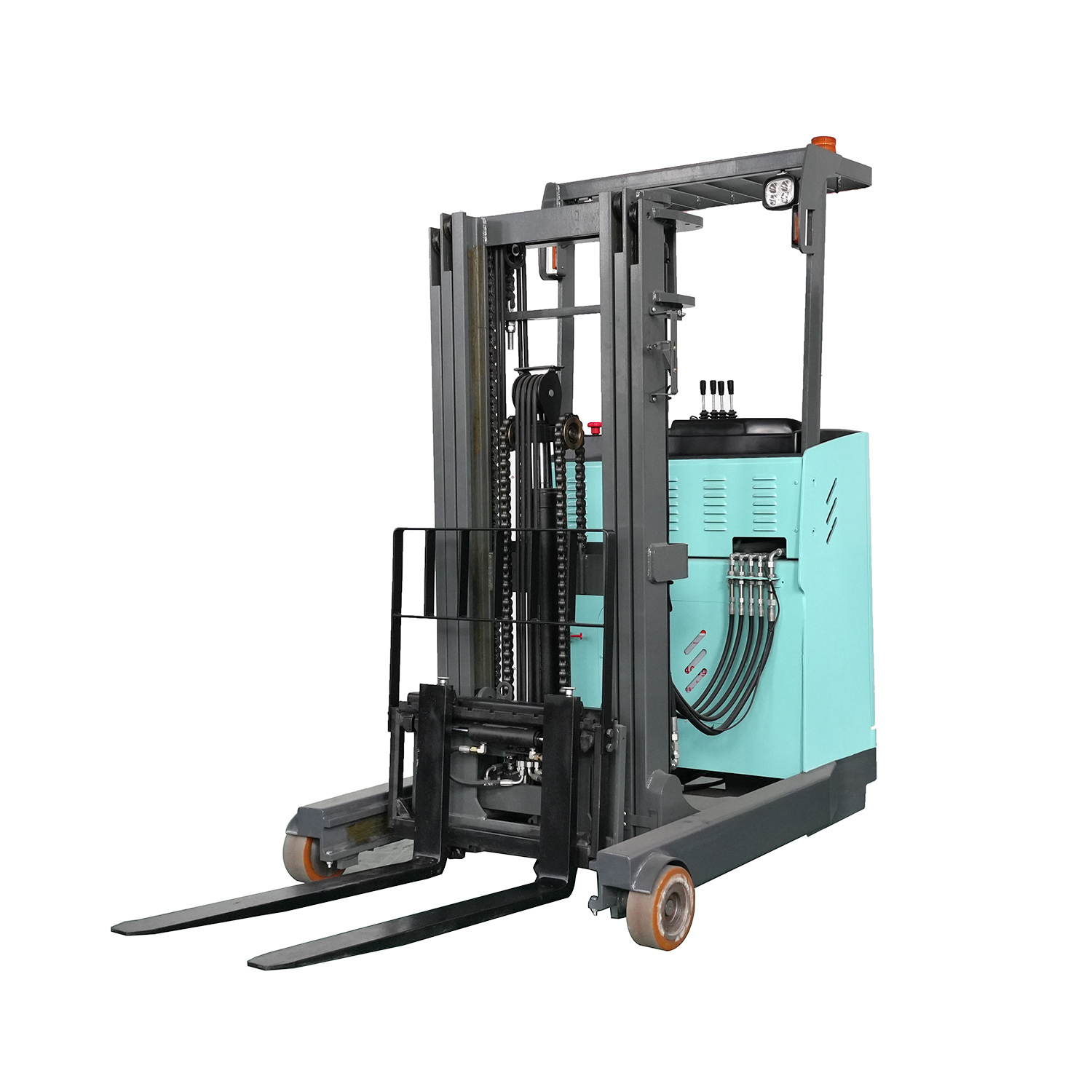

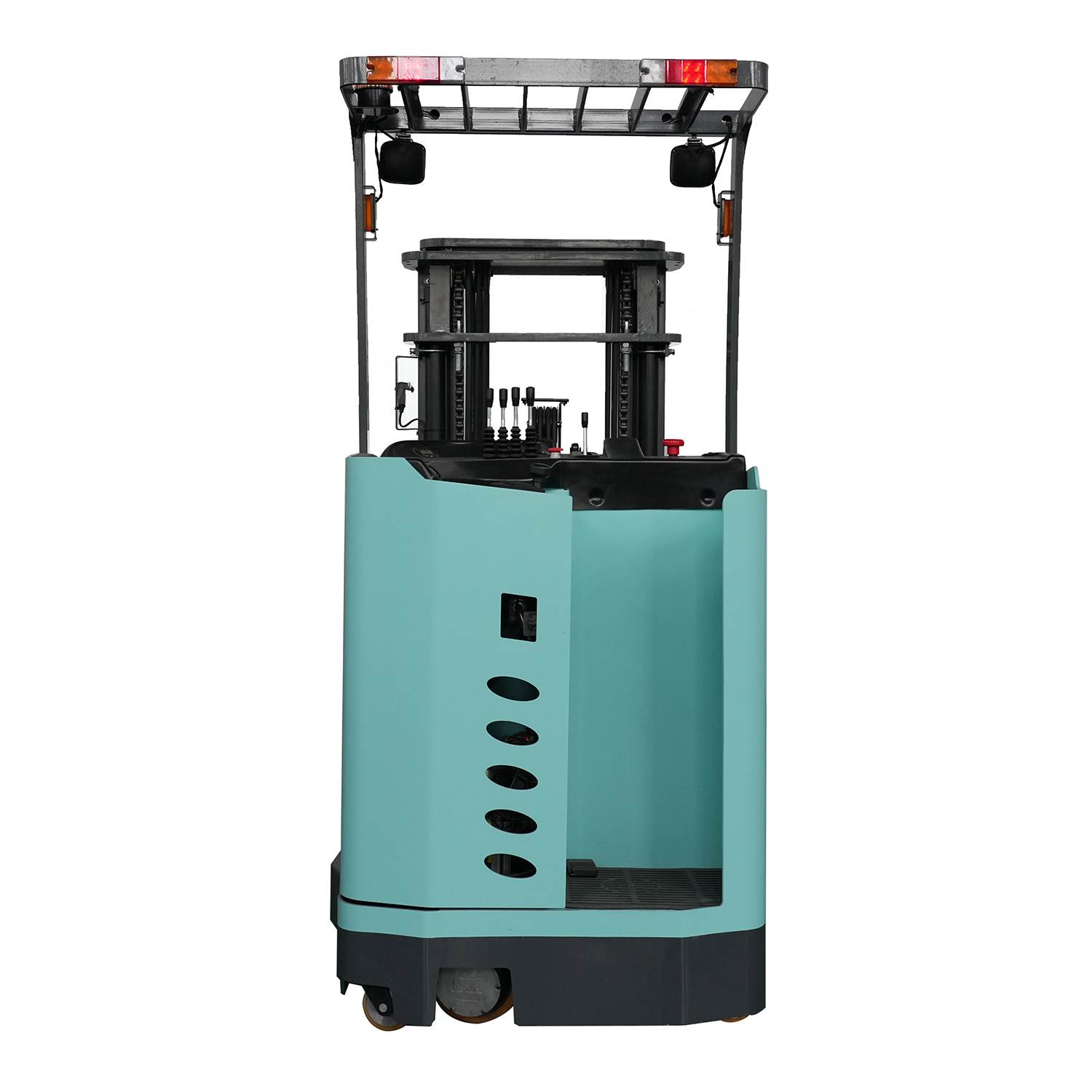

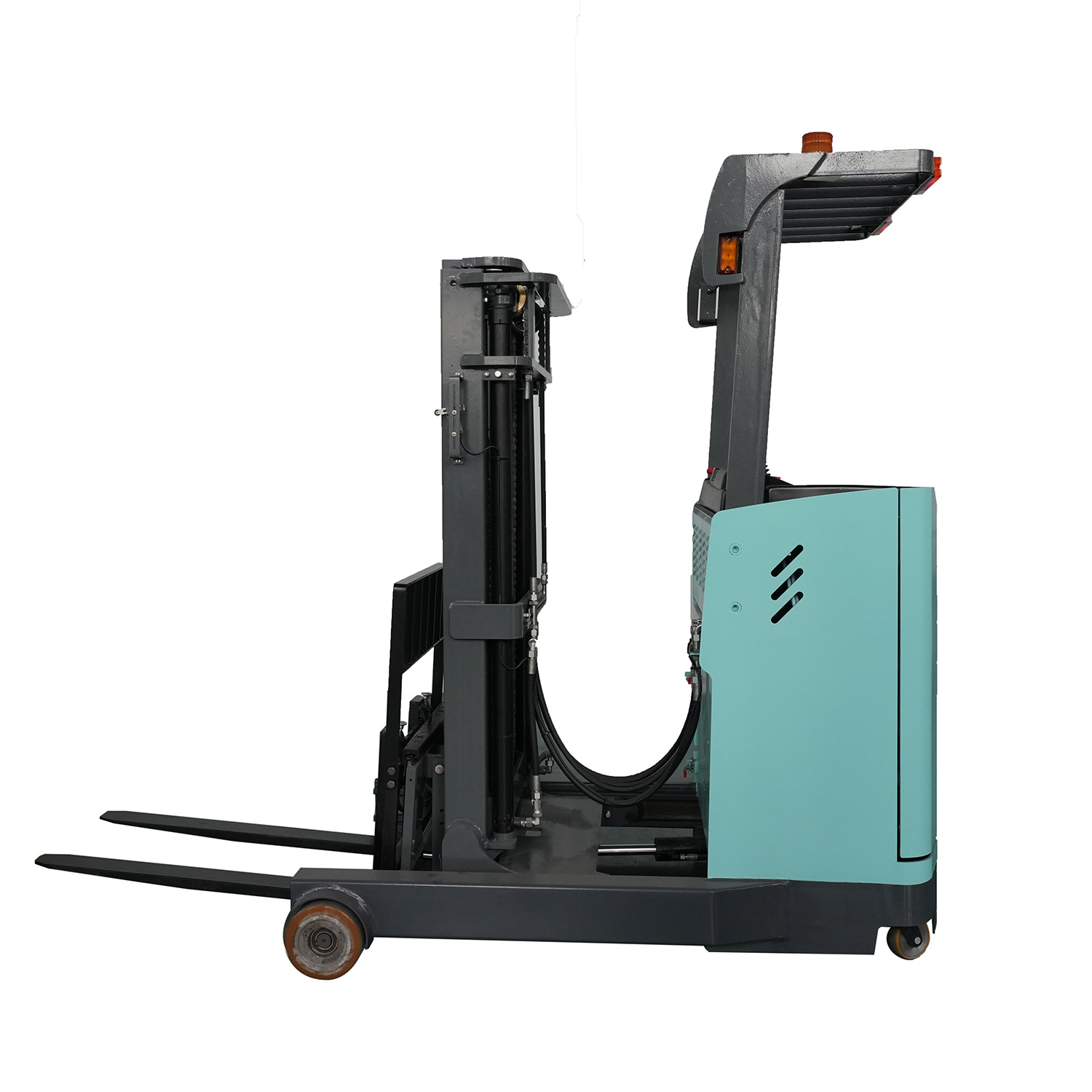

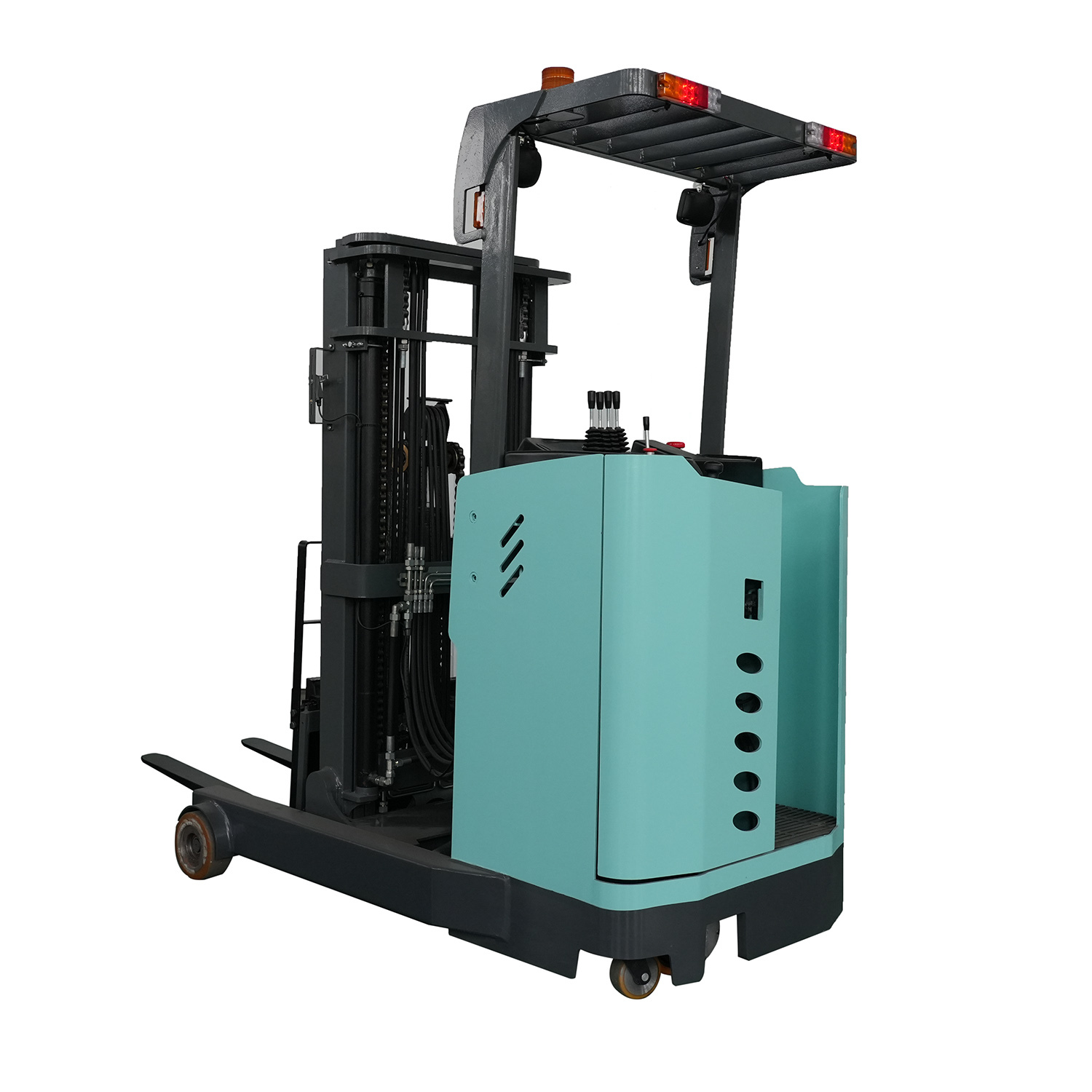

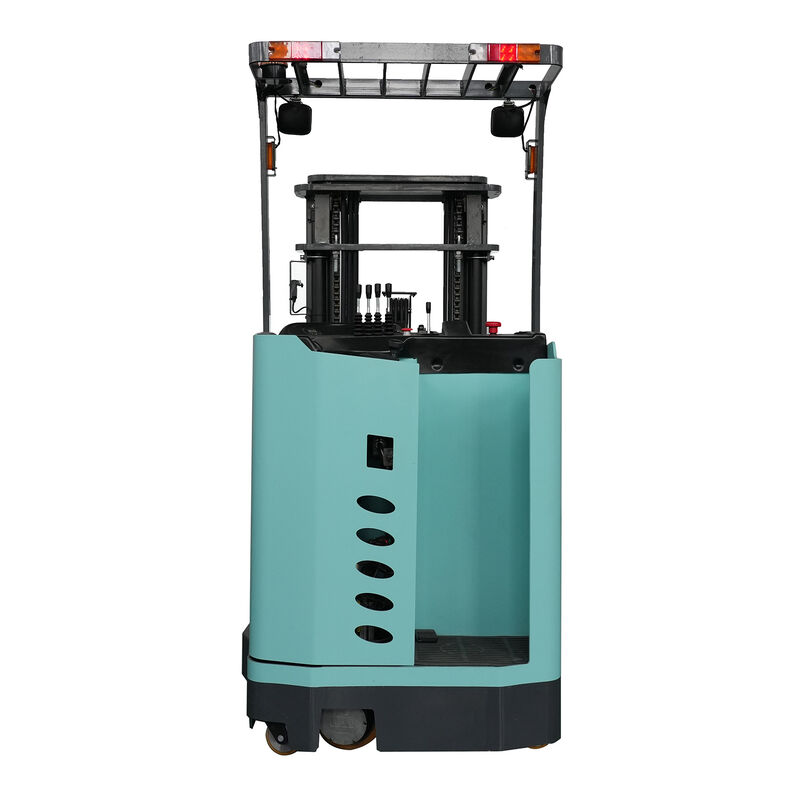

The reach forklift offers superior advantages in versatility and operational flexibility. Beyond the traditional reach forklift's capabilities, such as its adjustable mast and forks, which blend the benefits of electric stackers and counterbalanced forklifts, the side-shift feature allows for more efficient and precise handling in narrow or complex workspaces. This differentiation enables the to excel in various material handling scenarios.with side shiftreach forklift with side shiftFrist Class Ride on Electric Reach Truck Forklift for Narrow Aisle Warehouse with EPS
The reach forklift offers superior advantages in versatility and operational flexibility. Beyond the traditional reach forklift's capabilities, such as its adjustable mast and forks, which blend the benefits of electric stackers and counterbalanced forklifts, the side-shift feature allows for more efficient and precise handling in narrow or complex workspaces. This differentiation enables the to excel in various material handling scenarios.with side shiftreach forklift with side shiftFrist Class Ride on Electric Reach Truck Forklift for Narrow Aisle Warehouse with EPS
|
Model
|
|
CQDS1530
|
CQDS2030
|
|
Load Capacity
|
kg
|
1500
|
2000
|
|
Lifting Height
|
mm
|
3000
|
3000
|
|
Load capacity at the highest point
|
kg
|
1000
|
1000
|
|
Weight
|
kg
|
2500
|
2800
|
|
Overall length (forks retracted)
|
mm
|
2570
|
2570
|
|
Overall width
|
mm
|
1100/1390
|
1100/1390
|
|
Static height of gantry
|
mm
|
2100
|
2100
|
|
Height of roof rack
|
mm
|
2200
|
2200
|
|
Moving forward distance
|
mm
|
600
|
600
|
|
Ground clearance
|
mm
|
45
|
45
|
|
Minimum outside turning radius
|
mm
|
1600
|
1600
|
|
Maximum gradient with full load
|
%
|
5
|
5
|
|
Load centre distance
|
mm
|
500
|
500
|
|
Type specification of travelling motor
|
-
|
ZQD13-1C
|
ZQD13-1C
|
|
Travelling motor 1min working current
|
A
|
195
|
195
|
|
Battery capacity
|
-
|
280Ah/24V
|
280Ah/24V
|
